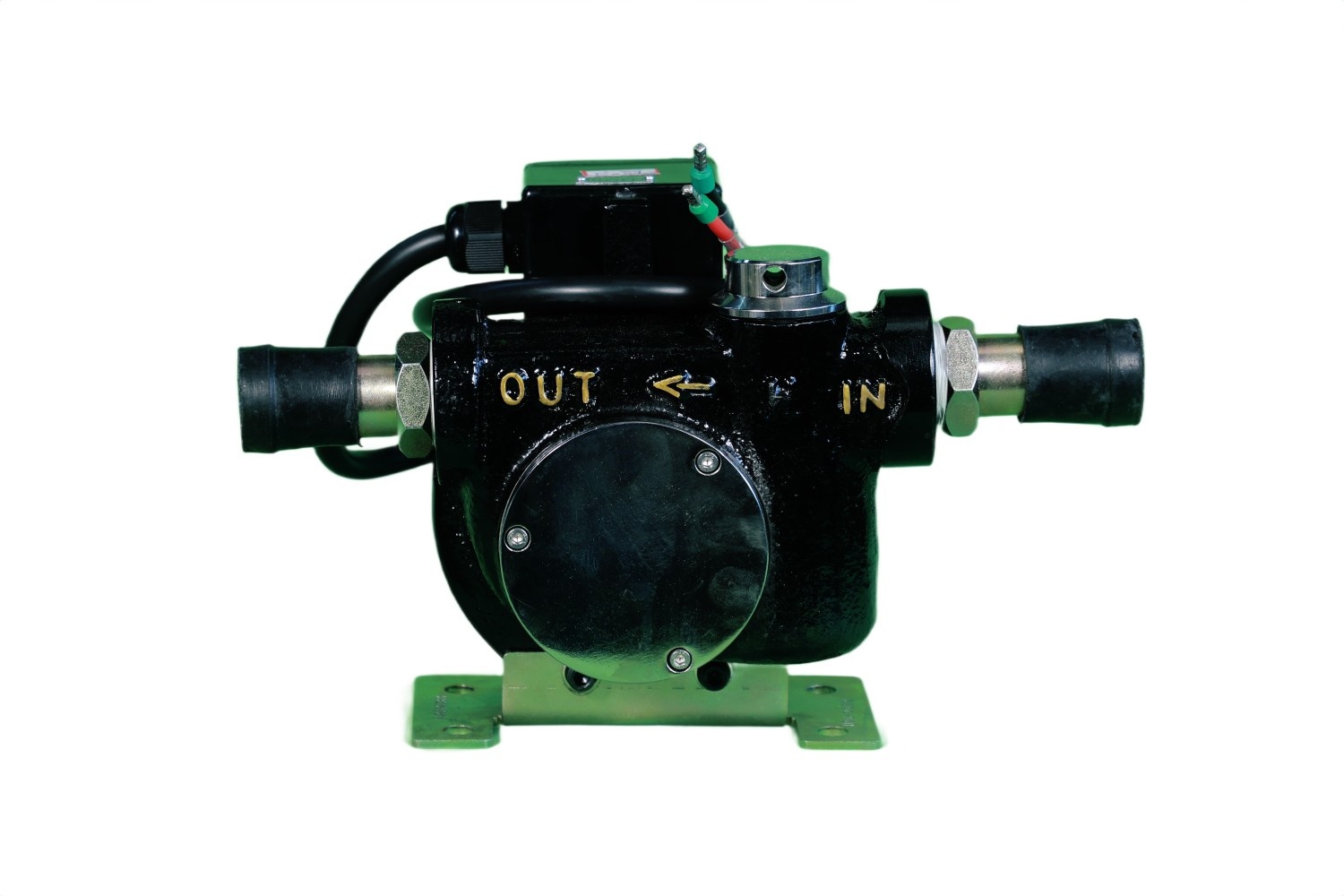

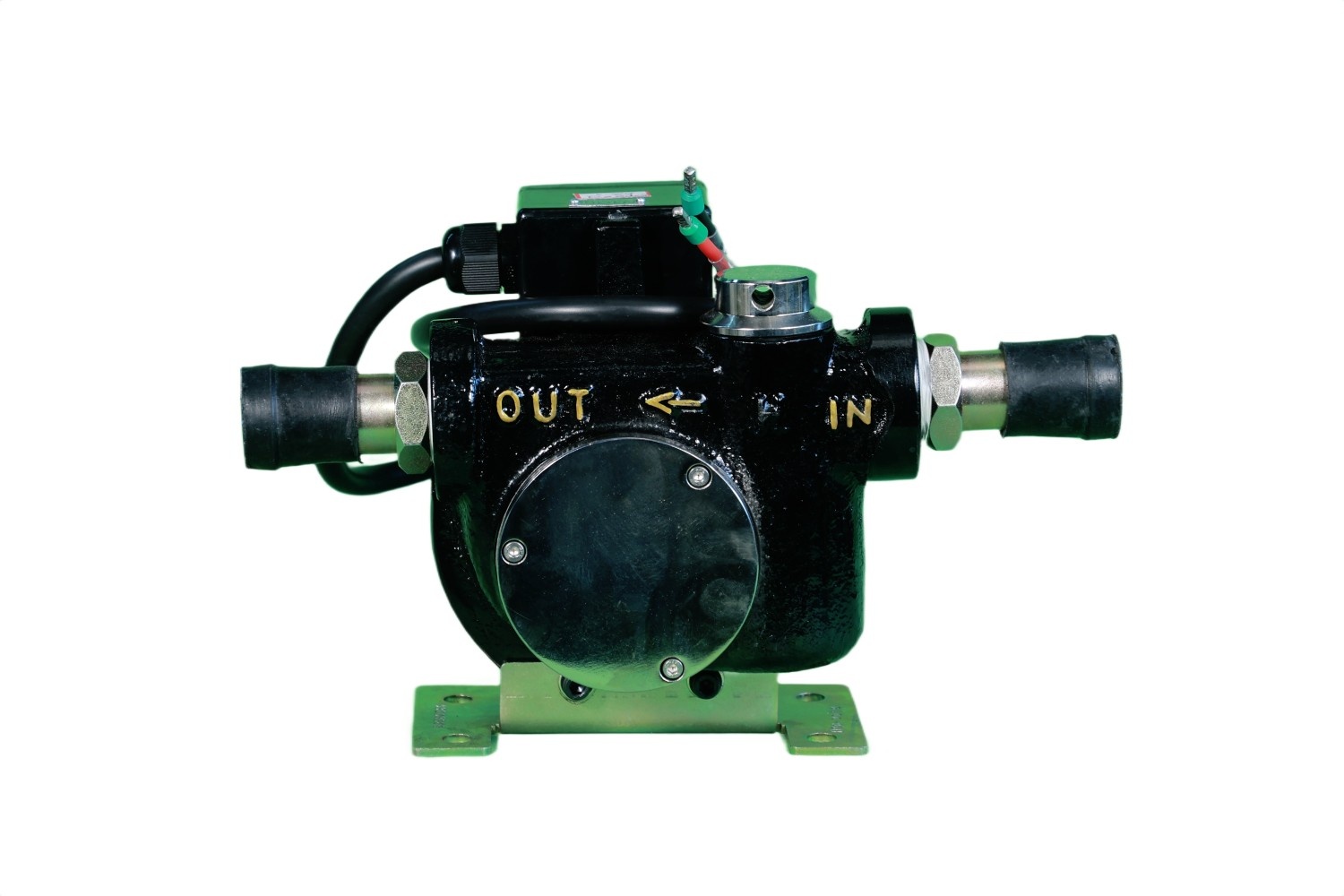

12V BLDC Fuel Transfer Pump – Model SP/050

The 12V BLDC Fuel Transfer Pump (Model SP/050) is a compact, high-performance fuel transfer solution engineered for reliable and efficient diesel dispensing in mobile and remote applications. Powered by a 12V DC Brushless DC (BLDC) motor, the pump is designed for continuous-duty operation, offering superior energy efficiency, longer service life, low maintenance, and quiet performance compared to conventional brushed motors. With a maximum flow rate of up to 50 litres per minute (LPM) and a suction lift of up to 1.7 metres, the SP/050 delivers fast and dependable fuel transfer even in demanding field conditions.

Constructed with a durable cast iron housing, the pump is built to withstand rugged industrial environments while maintaining reliable performance over extended periods. It operates efficiently within an ambient temperature range of -5°C to +55°C and draws up to 25 amps under maximum load. The unit weighs approximately 6.9 kg, has compact dimensions of 280 × 150 × 190 mm, and is available with 1-inch (25.4 mm) or 3/4-inch (19.05 mm) inlet and outlet connections, providing flexibility for a wide range of installation requirements.

The SP/050 is compatible with a variety of petroleum products, including Diesel, High-Speed Diesel (HSD), Light Diesel Oil (LDO), Biodiesel, and Kerosene, making it an ideal solution for portable and vehicle-mounted fuel transfer systems. It is widely used at construction sites, ports, mining operations, industrial facilities, agricultural farms, fleet management operations, emergency generator fueling, and mobile fuel bowsers, where a dependable DC-powered fuel transfer pump is required. Designed for durability, efficiency, and ease of operation, the 12V BLDC Fuel Transfer Pump (SP/050) provides a reliable solution for safe and continuous fuel dispensing in both on-site and remote applications.
