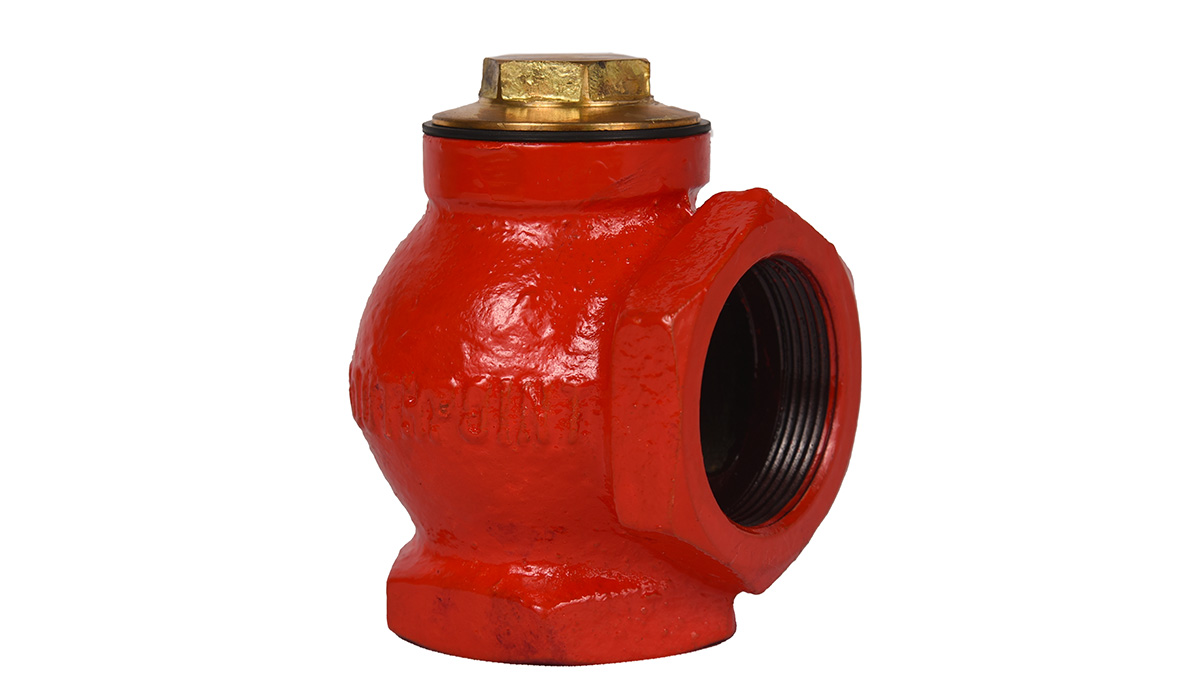

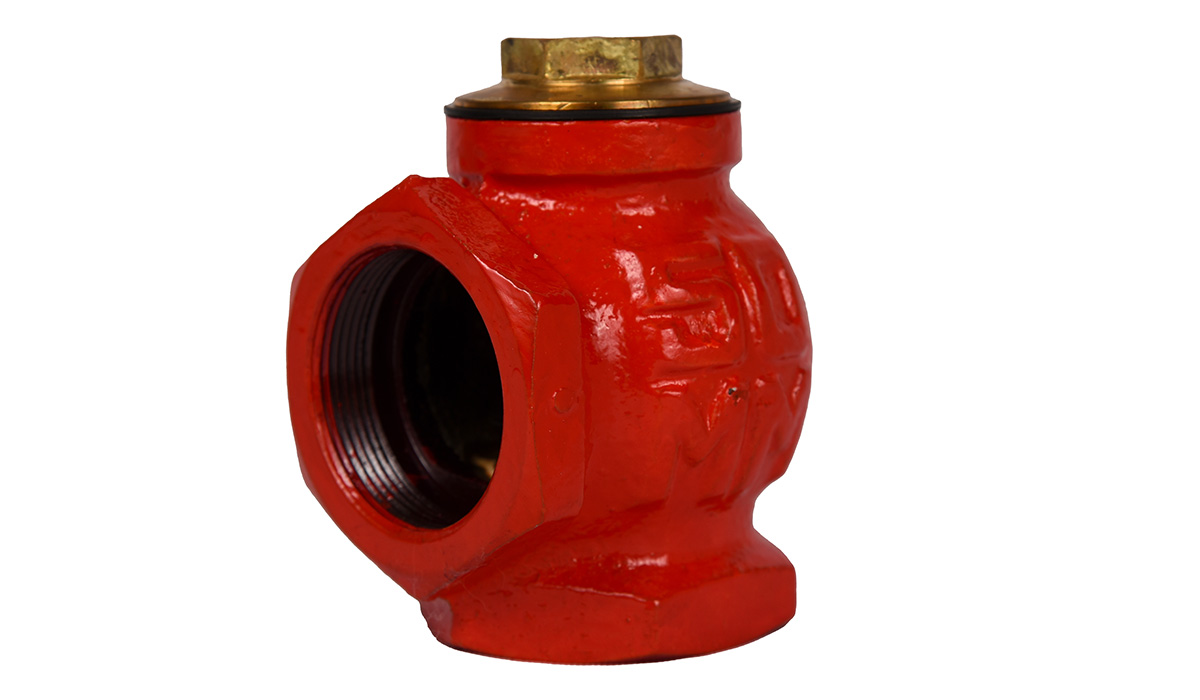

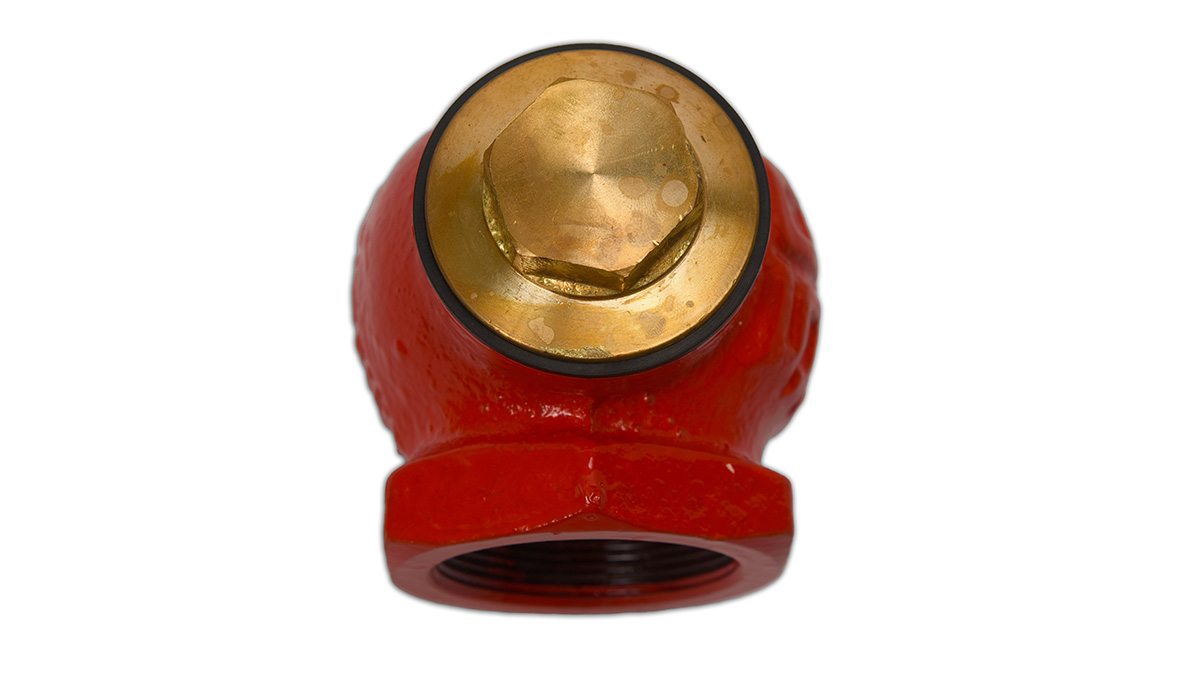

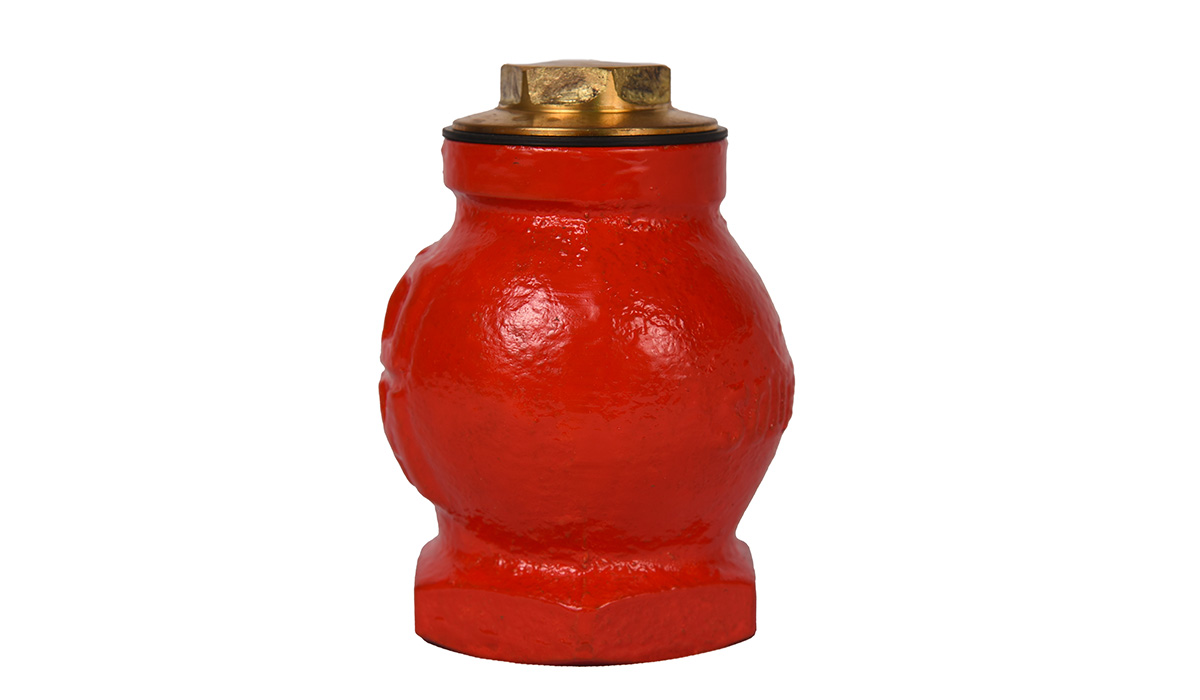

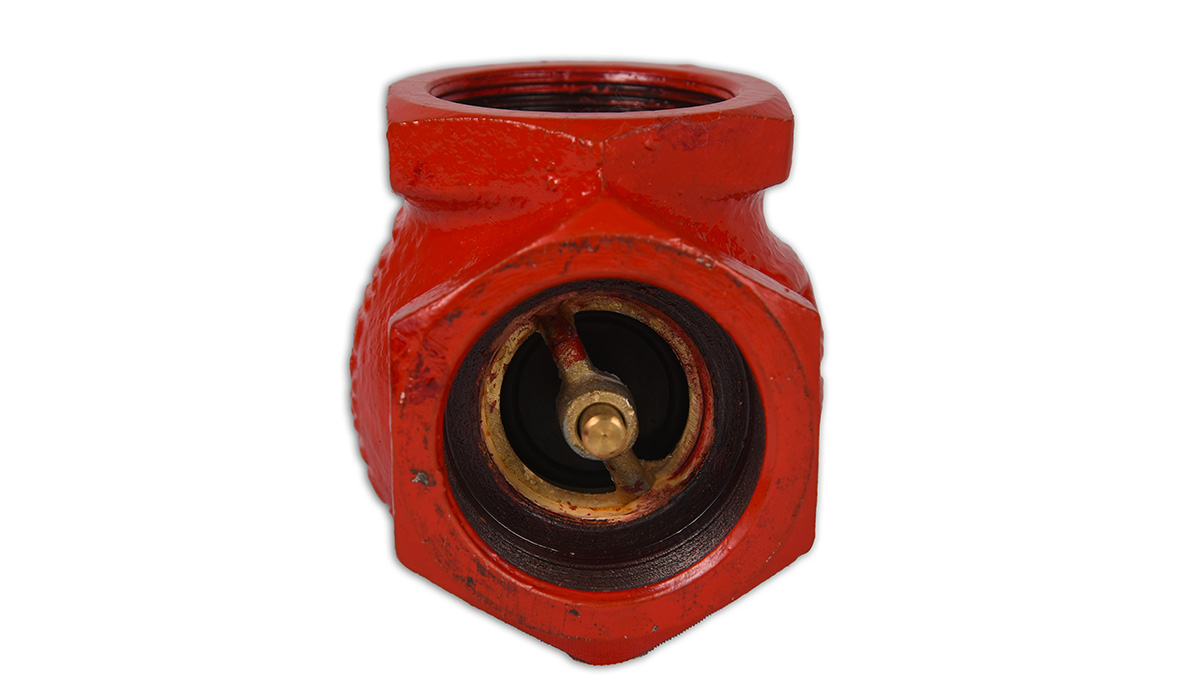

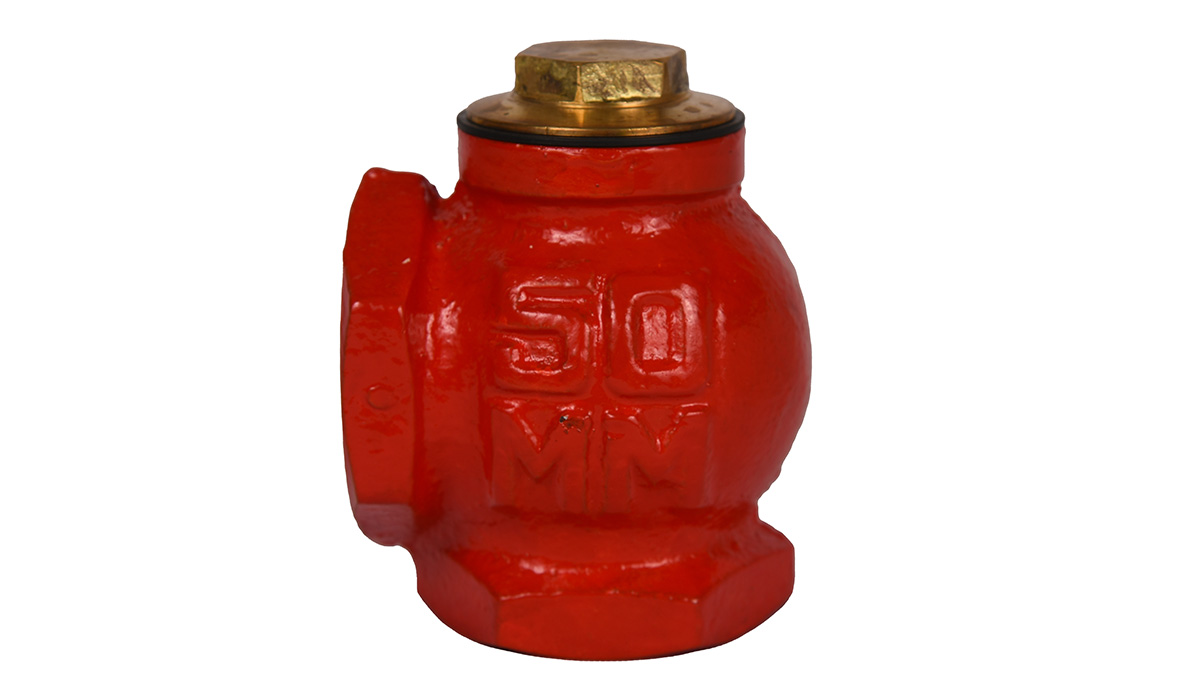

ANGULAR CHECK VALVE

NAME OF THE PRODUCT :: ANGULAR CHECK VALVE
AVAILABLE MODELS:: 2 INCH (50 mm) & 1.5 INCH (40 mm)
THREAD: BSP
WEIGHT: 1.15 KG APPROX
BODY MATERIAL:CAST IRON
POPPET ARMS MATERIAL: NEOPRENE, BRASS
SEAT MATERIAL: GUN METAL
CAP MATERIAL: BRASS
TESTED PRESSURE: 10 PSI TO 60 PSI
OPERATING TEMPERATURE: -5⁰C to 55⁰C

FEATURES:-

A uniquely designed valve with rubber poppet used in the suction line of dispensing pump and installed on the top of underground tank.
It can function effectively in a wide temperature range of -25 Degree Celsius & +100 Degree Celsius
It can withstand a pressure load upto 60lbs

APPLICATIONS: -

Angular Check Valve 40MM/50MM USED FOR LIQUID SPECIALLY PETROLEUM PRODUCTS LIKE LDO, HSD, KEROSENE, FURNACE OIL, BIO DIESEL etc. FUNCTIONS EQUALLY REQUIRED IN SUCTION PUMPS.

NEOGI Angular Check Valve – Product Overview

The NEOGI Angular Check Valve is a high-performance non-return valve designed for use in the suction line of fuel dispensing pumps. Installed on the top of underground storage tanks, it prevents backflow of liquid, maintains pump priming, and ensures smooth, uninterrupted fuel transfer. The valve features a uniquely designed rubber poppet mechanism that provides reliable sealing and efficient flow control.

After Sale Service

Need after-sales support? contact our service team via phone or email for quick assistance.

At Neogi, your satisfaction is our priority. We offer comprehensive after-sales support for all our products, including expert technical assistance, maintenance guidance, and prompt service support.

FAQ

Everything You Need To Know

An Angular Check Valve is used to allow fuel to flow in one direction while preventing reverse flow in the suction line of a dispensing pump. This helps maintain pump priming, protects the pumping system from backflow, and ensures efficient and reliable fuel transfer from underground storage tanks.
