ELECTRONIC FUEL DISPENSER (NTR/07)

AVAILABLE MODELS: ELECTRONIC
DIMENSIONS: 46cm x 41cm x 95cm
WEIGHT: 60KG APPROX
ACCURACY CLASS: 0.5%
FLOW RATE: UPTO 9O LPM
TYPE: Positive Displacement Meter
BODY MATERIAL: CRCA SHEET
REPEATABILITY: 100%
DISPLAY: Electronic Register Unit with 6-digit LCD display
PRINTER: YES
TOTALIZER: BOTH ELECTRONIC & MECHANICAL
CERTIFICATION: LEGAL METROLOGY GOV. OF INDIA
NOZZLE: MANUAL & AUTOSHUTOFF (AS PER CUSTOMER NEED)
MEASURES & MONITOR- LIKE LDO, HSD, KEROSENE, DIESEL, FURNACE OIL, BIO DIESEL ETC.
USAGE: STATIC & MOBILE FUEL DISPENSING

USAGE: STATIC & MOBILE FUEL DISPENSING
MEASURES & MONITOR- LIKE LDO, HSD, KEROSENE, FURNACE OIL, DIESEL, BIO DIESEL, TRASFORMER OIL,DEF (TO BE MENTIONED WHEN ORDERED) ETC.

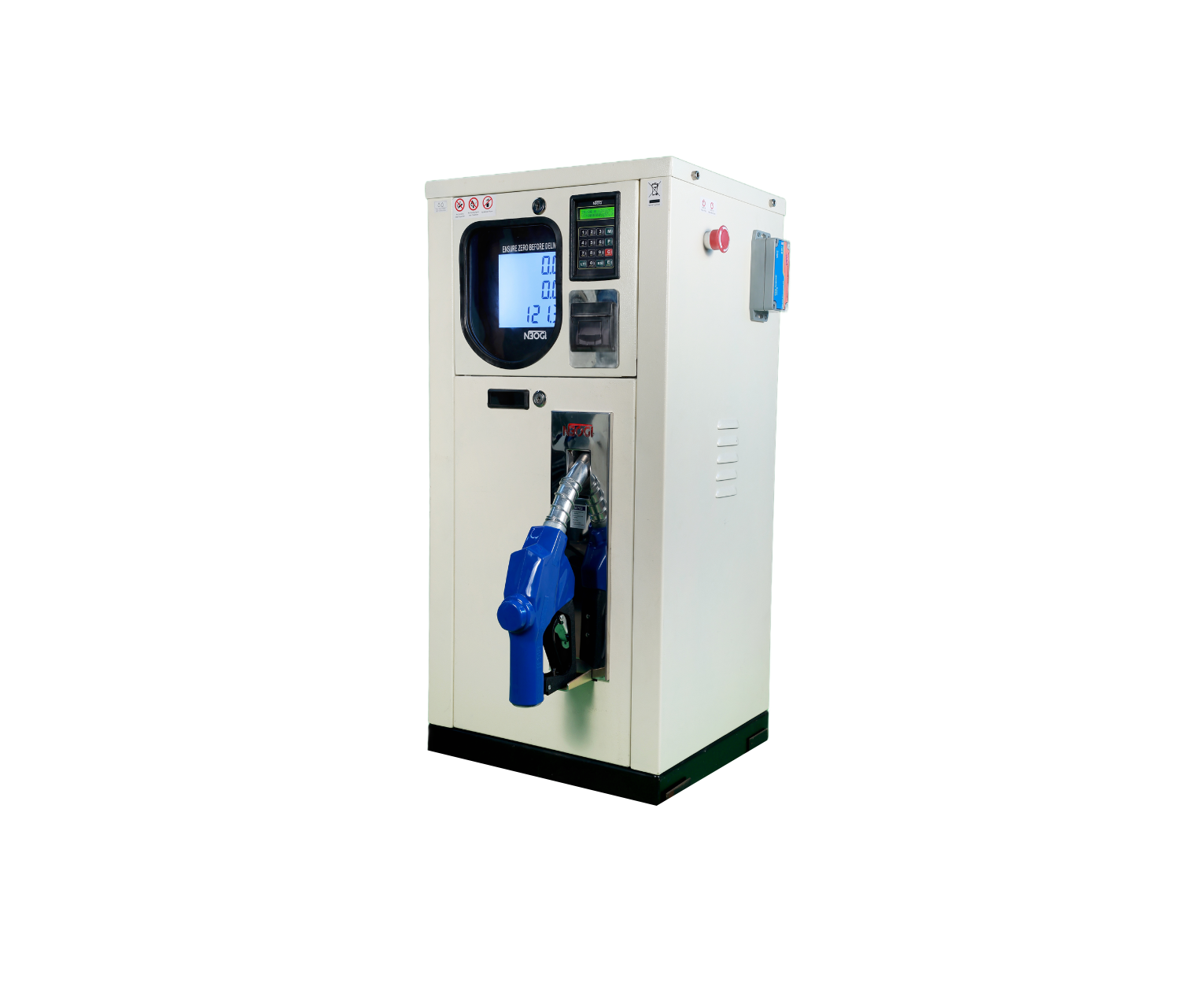

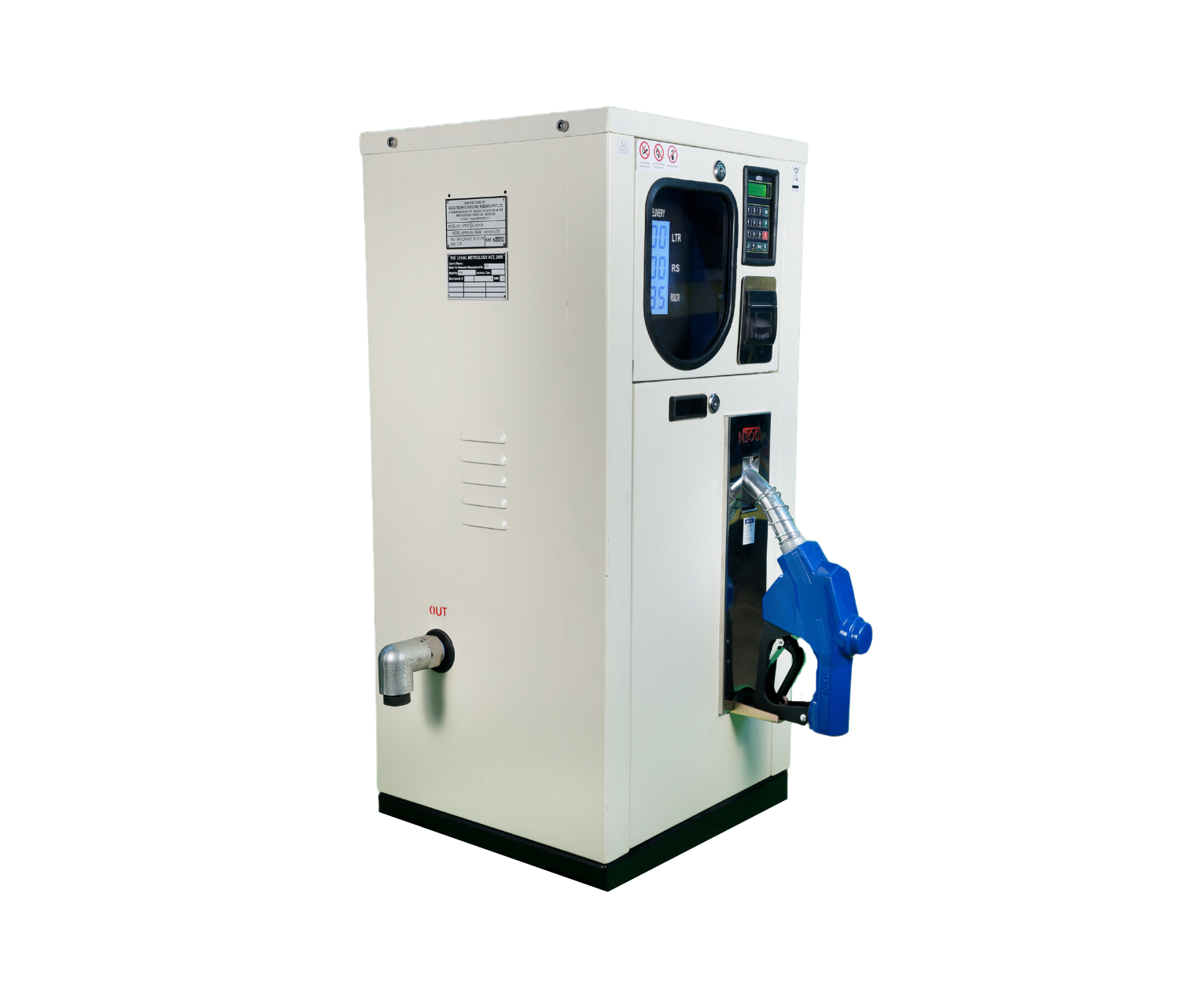

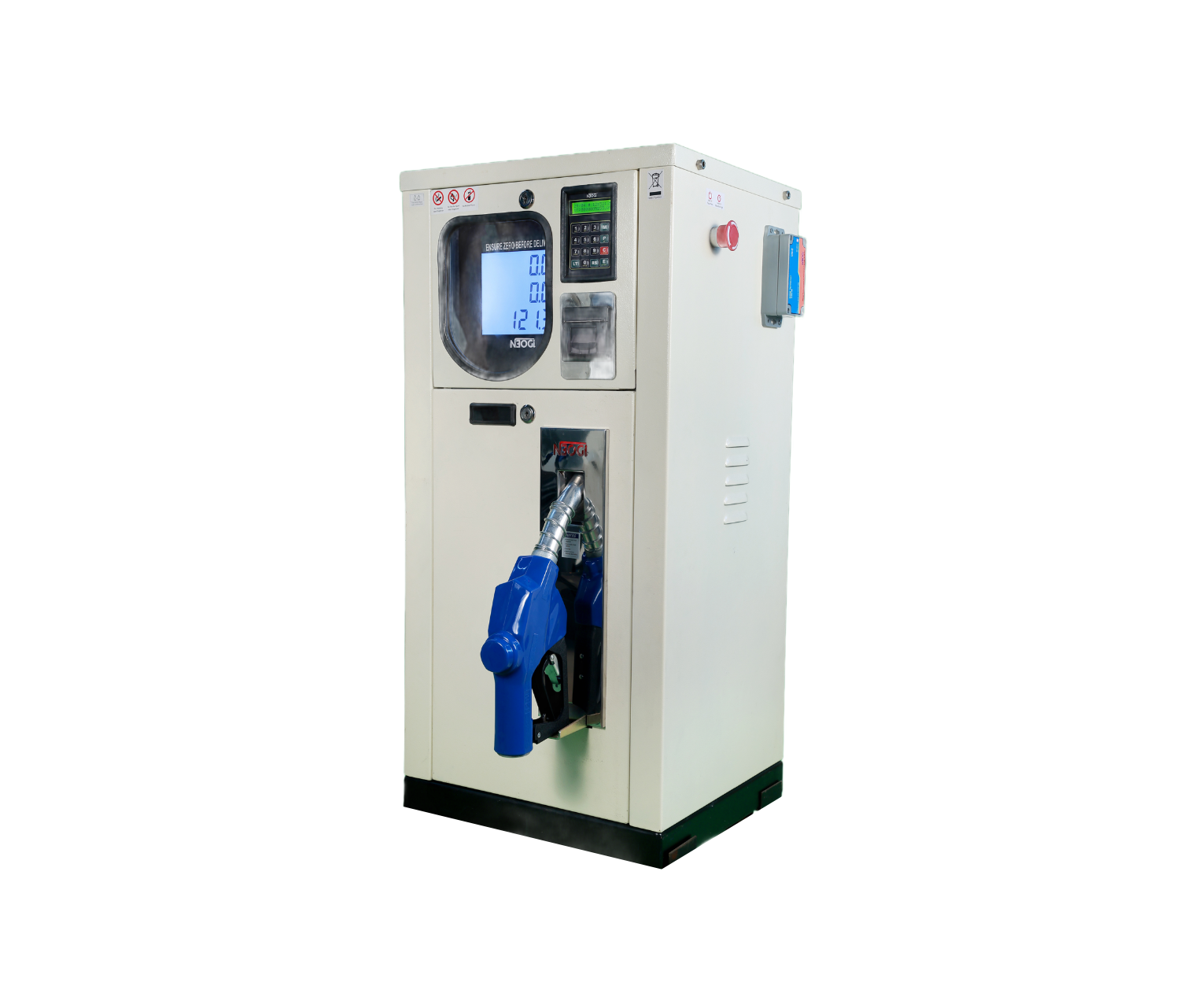

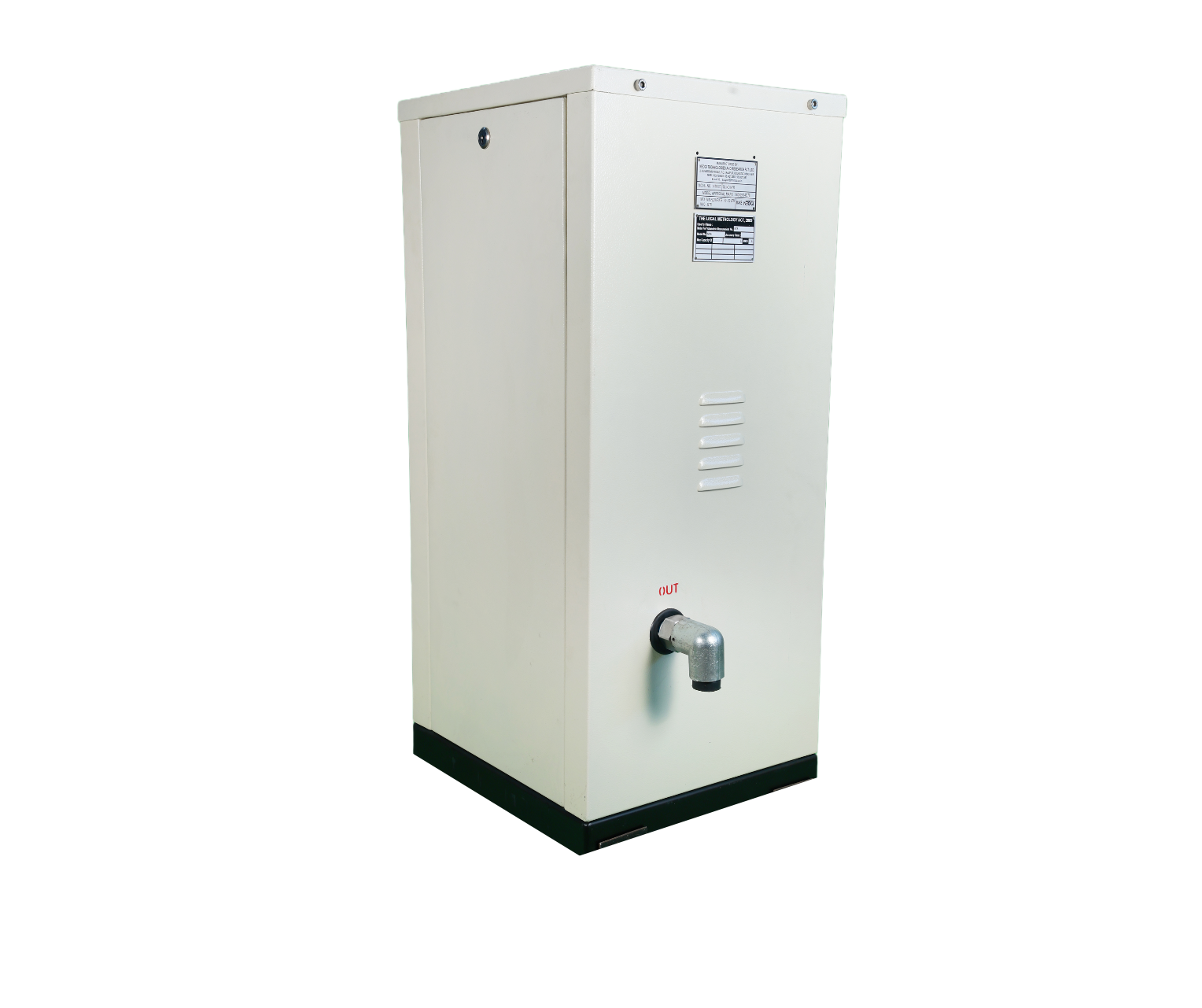

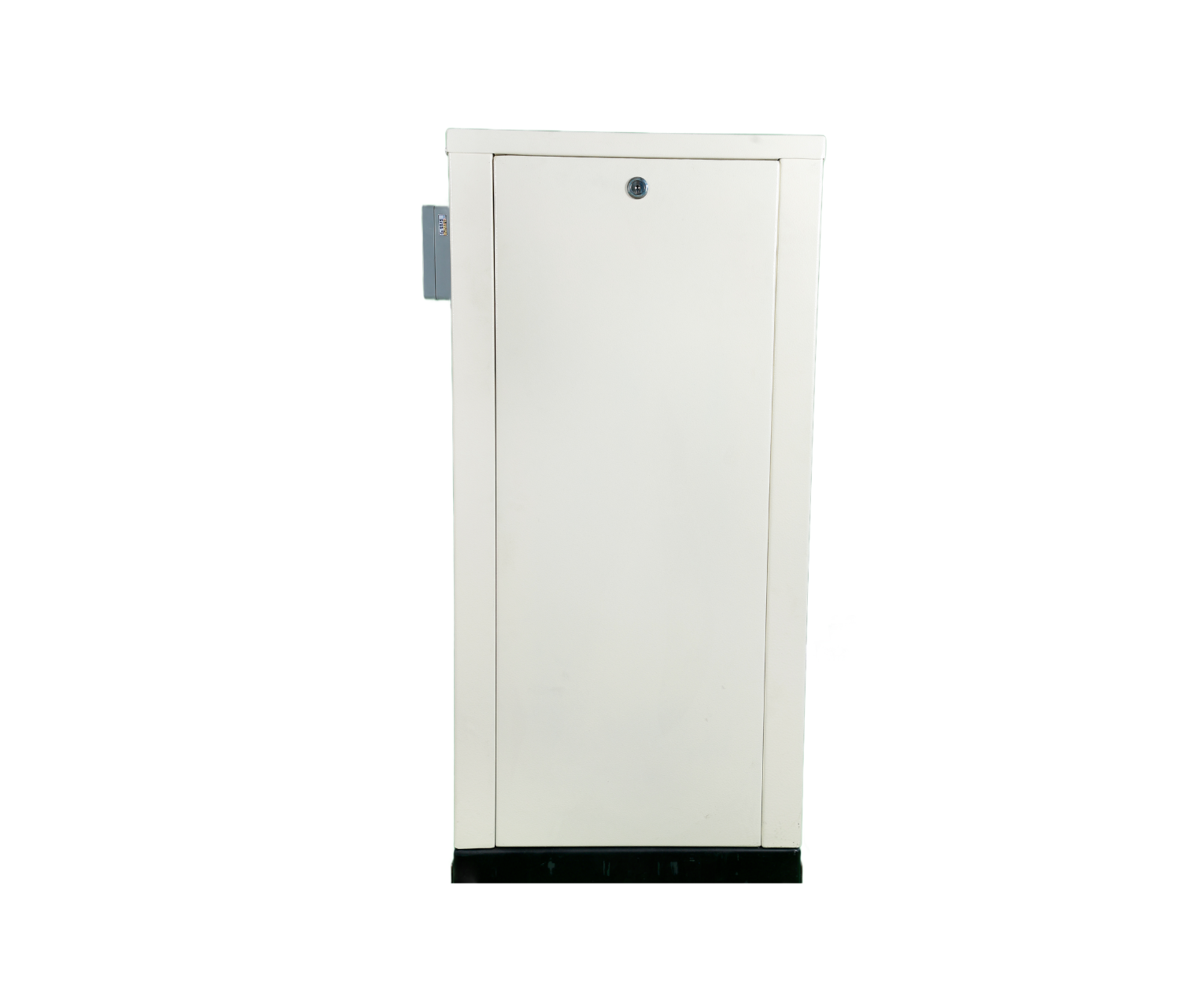

The Electronic Fuel Dispenser (Model NTR/07) is a high-performance fuel dispensing system designed for accurate, reliable, and efficient fuel transfer in both static and mobile fuel dispensing applications. Built with a Positive Displacement (PD) Meter, the dispenser provides an accuracy of ±0.5% with 100% repeatability, ensuring precise fuel measurement under continuous operation. It is capable of dispensing fuel at flow rates of up to 90 litres per minute (LPM) and features an electronic register unit with a 6-digit LCD display that provides clear and real-time transaction information. An integrated thermal printer enables instant printing of dispensing receipts, while the combination of electronic and mechanical totalizers ensures secure and reliable lifetime fuel records.

The dispenser is housed in a rugged CRCA sheet enclosure, measuring 46 cm × 41 cm × 95 cm and weighing approximately 60 kg, making it suitable for demanding industrial and commercial environments. It is certified by the Legal Metrology Department, Government of India, ensuring compliance with statutory standards for trade and measurement. The unit is available with manual or automatic shut-off nozzles, depending on customer requirements, to provide safe, convenient, and efficient fuel dispensing.

Designed to handle a wide range of petroleum and industrial fuels, the Electronic Fuel Dispenser (NTR/07) accurately measures and dispenses LDO, HSD, kerosene, furnace oil, diesel, biodiesel, transformer oil, and DEF (to be specified at the time of order). It is an ideal solution for fuel stations, industrial plants, mining operations, construction sites, fleet management, agricultural applications, bulk fuel storage facilities, and mobile fuel bowser systems, offering dependable performance, ease of operation, and long-term durability in demanding field conditions.

After Sale Service

Need after-sales support? contact our service team via phone or email for quick assistance.

At Neogi, your satisfaction is our priority. We offer comprehensive after-sales support for all our products, including expert technical assistance, maintenance guidance, and prompt service support.

FAQ

Everything You Need To Know

The line filter and the BLDC pump's inbuilt filter should be cleaned once every week or more frequently if the fuel quality is poor. Regular cleaning ensures smooth fuel flow, accurate dispensing, and extends the life of the pump.

Maintaining a minimum fuel level (dead stock) prevents the pump from drawing air. Running the tank too low can cause suction problems, inaccurate fuel measurement (air counting), and may damage the pump and flow meter.

A 6 sq. mm or larger cable is recommended for all electrical connections. Proper cable sizing minimizes voltage drop and ensures the pump receives the required 12V DC power for reliable operation.

The vehicle engine should be started before dispensing so the alternator can continuously charge the battery while the pump is operating. This helps maintain a stable voltage supply and improves pump performance.

Yes. The vehicle should remain completely stationary and kept in Neutral during dispensing. This ensures safe operation and accurate fuel measurement.

Switching off the pump after every dispensing operation prevents unnecessary power consumption, reduces wear on the pump, and increases the overall life of the system.

The fuel tank should be thoroughly cleaned before first use and periodically during operation. Clean fuel free from dust, rust, water, or other foreign particles helps protect the pump, flow meter, filters, and dispensing system from damage.

Running the tank dry can cause the pump to draw air instead of fuel. This may lead to suction failure, inaccurate dispensing, air counting, and can seriously damage the Neogi Flow Scope and associated accessories.

No. The flow meter, controller, and other system components should never be tampered with. Unauthorized modifications can affect dispensing accuracy, damage the equipment, void the warranty, and compromise safety.

Suction problems are generally caused by: • Low fuel level in the tank. • Clogged line filter or pump filter. • Dirty fuel or contaminated tank. • Air entering the suction line. • Improper electrical wiring causing low voltage.

To maximize system life: • Clean both filters weekly. • Use clean, contamination-free fuel. • Maintain adequate fuel in the tank. • Use the recommended electrical cable size. • Switch off the pump after use. • Never allow the tank to run dry.

For optimum performance: • Weekly: Clean the line filter and BLDC pump filter. • Daily: Check fuel level and inspect for leaks. • Periodically: Clean the fuel tank and inspect electrical wiring and hose connections.

Check the following before requesting service: • Ensure sufficient fuel is available in the tank. • Clean the line filter and pump filter. • Verify the battery voltage is approximately 12V DC. • Check all electrical connections. • Ensure there are no air leaks or blockages in the suction line. If the issue persists, contact the NTR India service team for technical assistance.

Yes. Fuel contaminated with dust, rust, water, or other foreign particles can clog filters, reduce flow rate, affect meter accuracy, and damage internal components. Always use clean fuel from reliable sources.
