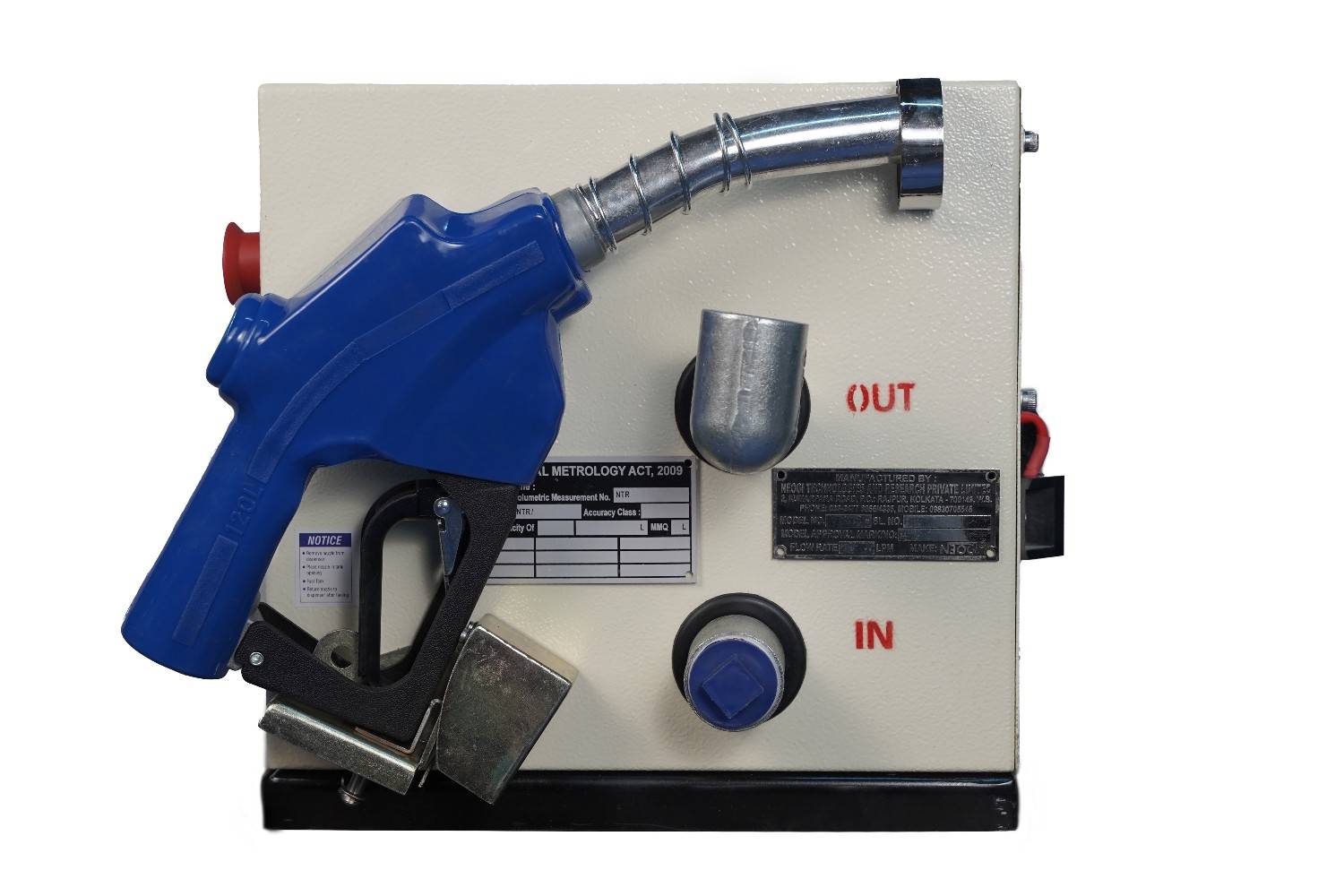

NEOGI FLOW SCOPE (NTR/08, NTR/09)

POSITIVE DISPLACEMENT METER
REPEATABILITY 100%.
FLOW RATE: 5 TO 60 LPM.
ELECTRONIC REGISTER UNIT WITH 6-DIGIT LCD DISPLAY.
THE RATE OF THE FUEL CAN BE SET VERY EASILY WITH THE HELP OF THE KEYPAD.
THE CLOCK CAN BE SET IN 24H FORMAT WITH THE HELP OF THE KEYPAD.
DENSITY OF THE FUEL CAN BE SET WITH THE HELP OF THE KEYPAD, WHICH CAN BE PRINTED ON THE BILL.
AVAILABLE MODELS: ELECTRONIC
DIMENSIONS: 58 cm x 33 cm x 42 cm
ACCURACY CLASS: 0.5%
FLOW RATE: UP TO 60 LPM
TYPE: Positive Displacement Meter
BODY MATERIAL: NA
REPEATABILITY: 100%

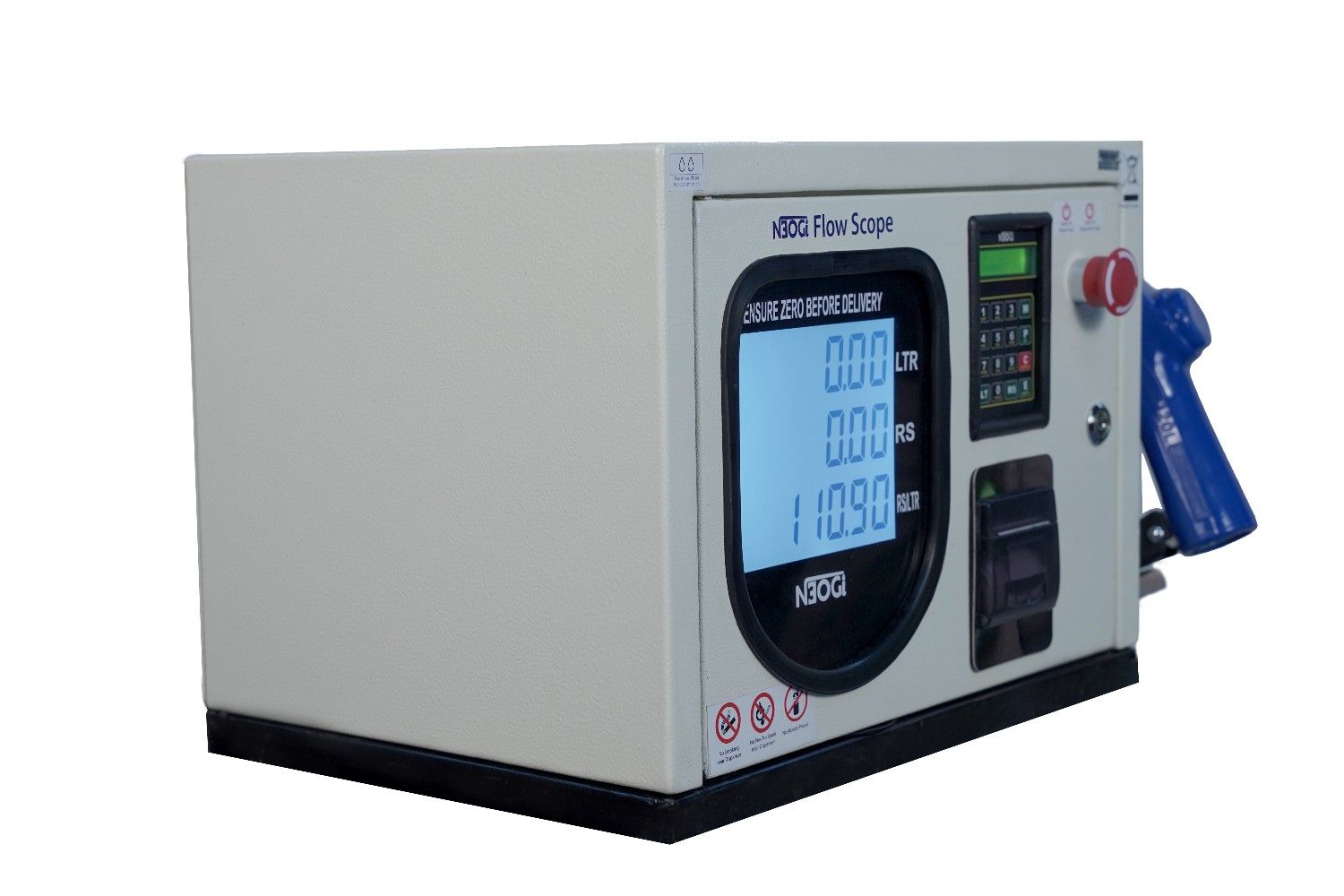

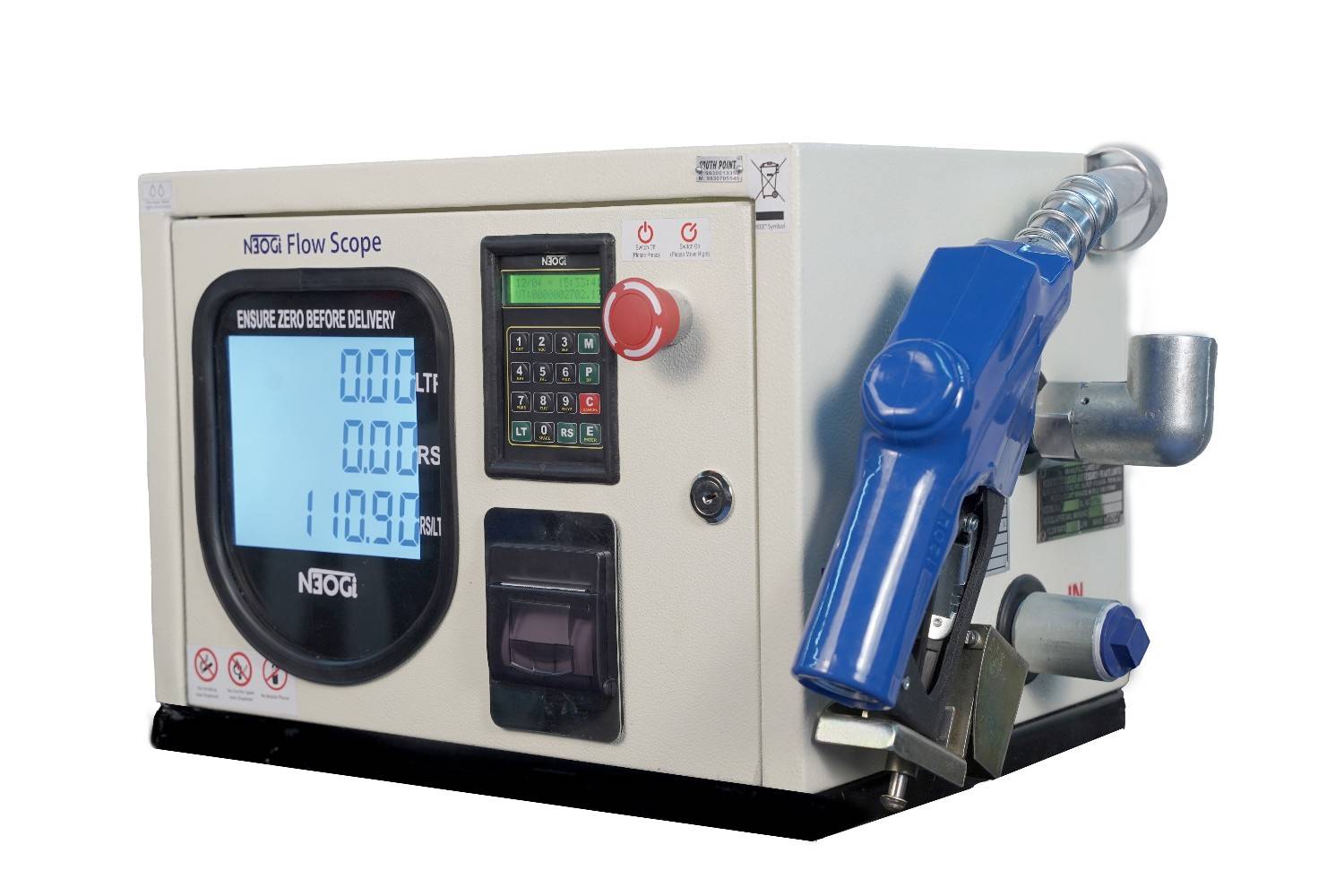

DISPLAY: Electronic Register Unit with 6-digit LCD Display
PRINTER: YES
TOTALIZER: ELECTRONIC
CERTIFICATION: LEGAL METROLOGY, GOVT. OF INDIA
NOZZLE: MANUAL & AUTO SHUT-OFF (AS PER CUSTOMER REQUIREMENT)
GSM: AS PER REQUIREMENT

USAGE: STATIC & MOBILE FUEL DISPENSING
MEASURES & MONITORS: LDO, HSD, KEROSENE, FURNACE OIL, DIESEL, BIODIESEL, TRANSFORMER OIL, DEF (TO BE MENTIONED WHEN ORDERED), ETC.

MODEL NO:NTR/08- MOBILE USE, NTR/09- STATIC USE (ELECTRONIC FUEL DIEPENSER)

**NEOGI FLOW SCOPE (NTR/08 – Mobile Use, NTR/09 – Static Use)** is a high-precision volumetric flow meter designed for accurate fuel measurement and dispensing applications. Equipped with a Positive Displacement (PD) Meter, it delivers exceptional measurement accuracy with an accuracy class of ±0.5% and 100% repeatability. The unit is suitable for both static and mobile fuel dispensing operations and supports a flow rate ranging from 5 to 60 litres per minute (LPM). The system features an Electronic Register Unit with a 6-digit LCD display, allowing users to easily set the fuel rate, fuel density, and a 24-hour format clock through an integrated keypad. Fuel density settings can also be printed on the dispensing bill for enhanced record-keeping and transparency. The meter comes with an electronic totalizer, built-in printer, and options for both manual and auto shut-off nozzles as per customer requirements. Compact in design with dimensions of 58 cm × 33 cm × 42 cm, the NEOGI FLOW SCOPE is certified by the Legal Metrology Department, Government of India, ensuring compliance with statutory measurement standards. It is ideal for measuring, monitoring, and dispensing various petroleum and industrial fluids, including LDO, HSD, Diesel, Bio-Diesel, Kerosene,Transformer Oil Furnace Oil, DEF (Diesel Exhaust Fluid), and other compatible liquids as specified at the time of order.

After Sale Service

Need after-sales support? contact our service team via phone or email for quick assistance.

At Neogi, your satisfaction is our priority. We offer comprehensive after-sales support for all our products, including expert technical assistance, maintenance guidance, and prompt service support.

FAQ

Everything You Need To Know

The line filter and the BLDC pump's inbuilt filter should be cleaned once every week or more frequently if the fuel quality is poor. Regular cleaning ensures smooth fuel flow, accurate dispensing, and extends the life of the pump.

Maintaining a minimum fuel level (dead stock) prevents the pump from drawing air. Running the tank too low can cause suction problems, inaccurate fuel measurement (air counting), and may damage the pump and flow meter.

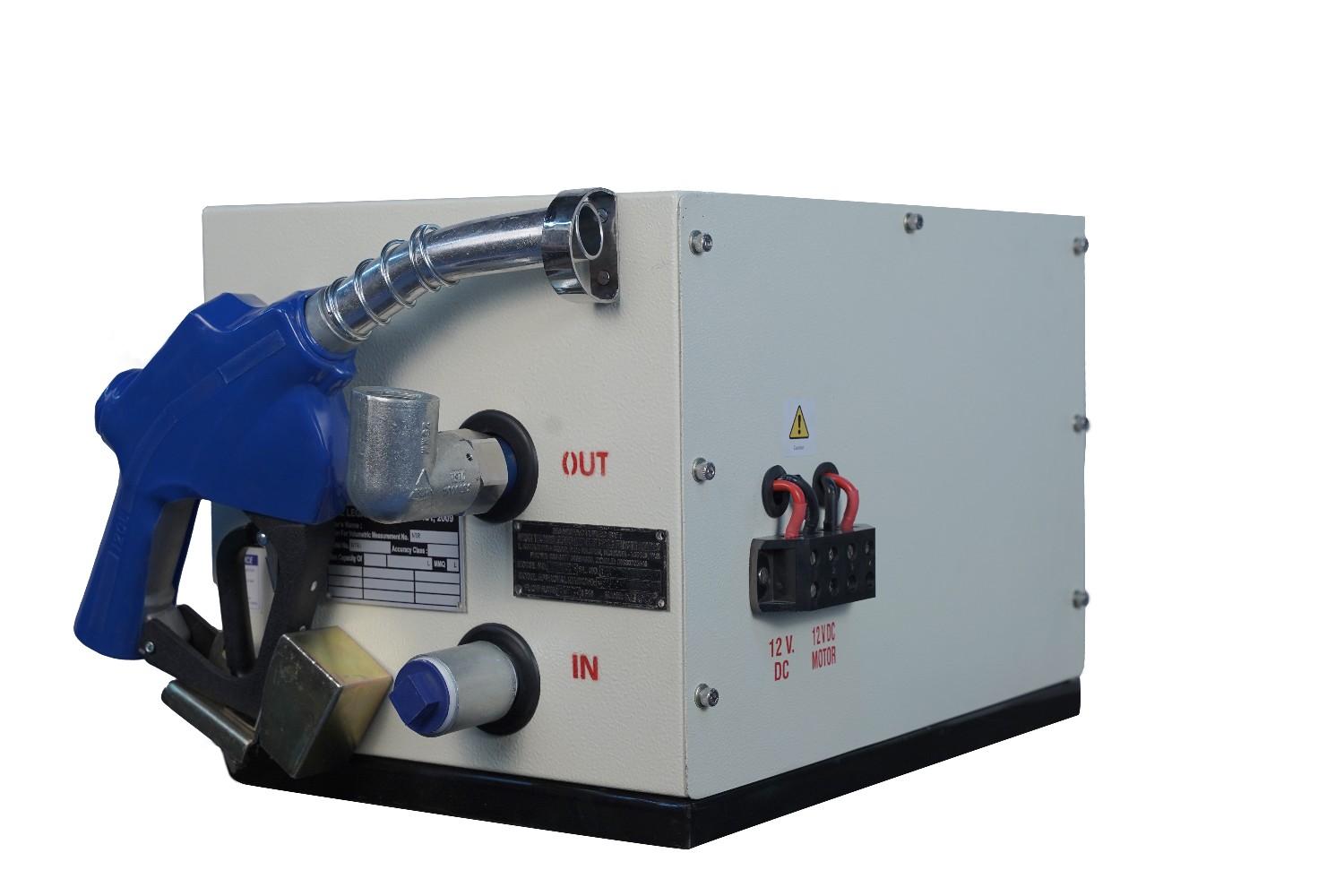

A 6 sq. mm or larger cable is recommended for all electrical connections. Proper cable sizing minimizes voltage drop and ensures the pump receives the required 12V DC power for reliable operation.

The vehicle engine should be started before dispensing so the alternator can continuously charge the battery while the pump is operating. This helps maintain a stable voltage supply and improves pump performance.

Yes. The vehicle should remain completely stationary and kept in Neutral during dispensing. This ensures safe operation and accurate fuel measurement.

Switching off the pump after every dispensing operation prevents unnecessary power consumption, reduces wear on the pump, and increases the overall life of the system

The fuel tank should be thoroughly cleaned before first use and periodically during operation. Clean fuel free from dust, rust, water, or other foreign particles helps protect the pump, flow meter, filters, and dispensing system from damage.

Running the tank dry can cause the pump to draw air instead of fuel. This may lead to suction failure, inaccurate dispensing, air counting, and can seriously damage the Neogi Flow Scope and associated accessories.

No. The flow meter, controller, and other system components should never be tampered with. Unauthorized modifications can affect dispensing accuracy, damage the equipment, void the warranty, and compromise safety.

Suction problems are generally caused by: • Low fuel level in the tank. • Clogged line filter or pump filter. • Dirty fuel or contaminated tank. • Air entering the suction line. • Improper electrical wiring causing low voltage.

To maximize system life: • Clean both filters weekly. • Use clean, contamination-free fuel. • Maintain adequate fuel in the tank. • Use the recommended electrical cable size. • Switch off the pump after use. • Never allow the tank to run dry.

For optimum performance: • Weekly: Clean the line filter and BLDC pump filter. • Daily: Check fuel level and inspect for leaks. • Periodically: Clean the fuel tank and inspect electrical wiring and hose connections.

Check the following before requesting service: • Ensure sufficient fuel is available in the tank. • Clean the line filter and pump filter. • Verify the battery voltage is approximately 12V DC. • Check all electrical connections. • Ensure there are no air leaks or blockages in the suction line. • If the issue persists, contact the NTR India service team for technical assistance.

Yes. Fuel contaminated with dust, rust, water, or other foreign particles can clog filters, reduce flow rate, affect meter accuracy, and damage internal components. Always use clean fuel from reliable sources.
