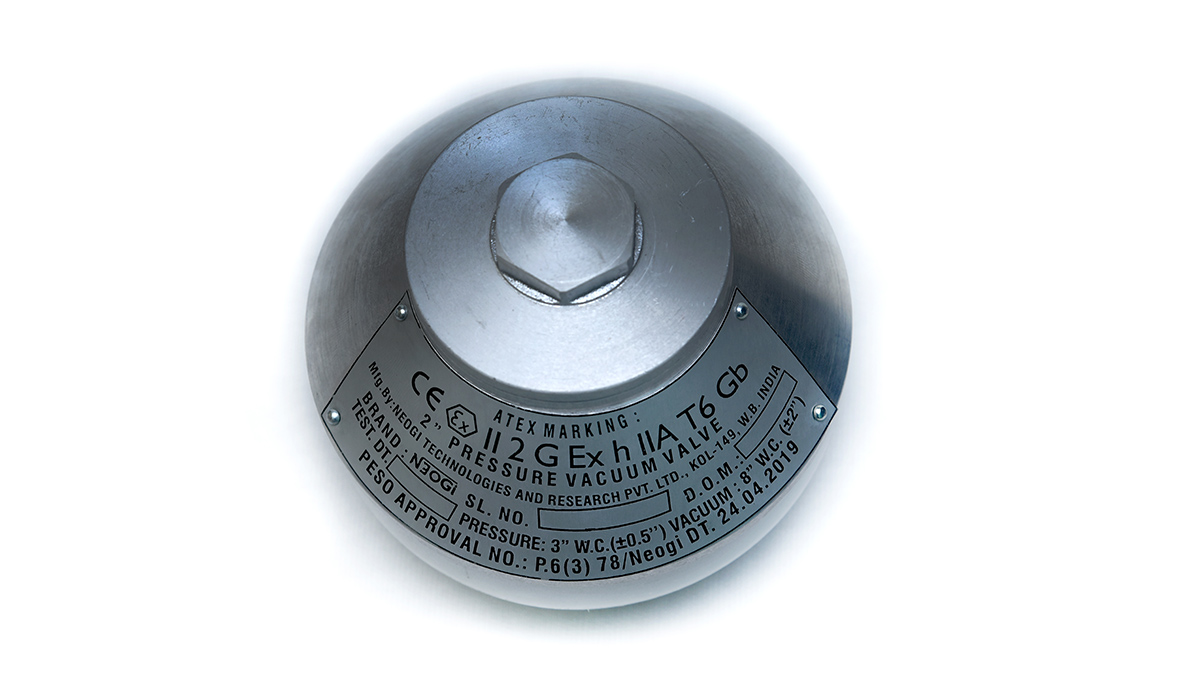

NEOGI PV PVALVE (PRESSURE CUM VACUUM VALVE)

NEOGI PV PVALVE (PRESSURE CUM VACUUM VALVE)

Available Models: 2 inch (50 mm) & 1.5 inch (40 mm)
Model No: N/A
Approval Mark: N/A
Thread: BSP
Weight: 2 inch (50mm) – 664gm & 1.5 inch (40mm) – 656gm (approx)
Body Material: Aluminium Alloy
Functional Test At: Pressure 3" (±0.5") of water column & Vacuum 8" (±0.5") of water column
Certification: ATEX Marking, PESO Govt. of India
Installation: Can be installed on a tank having a maximum 20 KL capacity

Continuous duty cycle

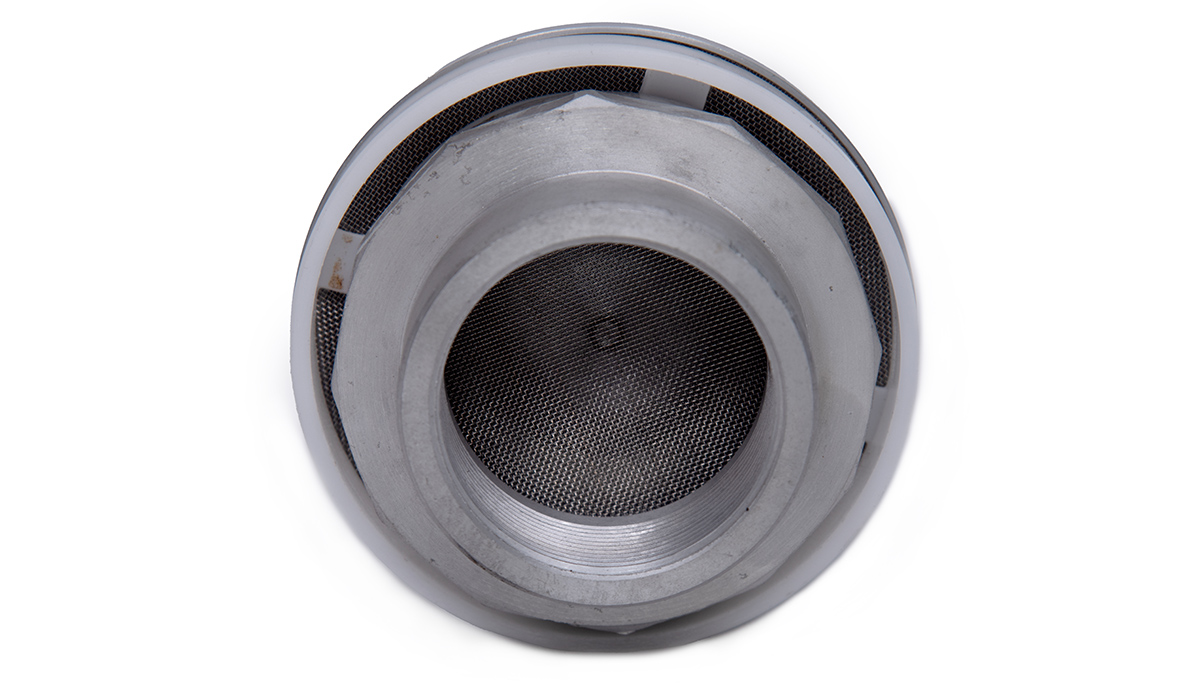

Main part made of cast aluminium with SS wire mesh to protect from foreign particles
Very easy installation & maintenance
Pressure/vacuum settings at 3-inch (±0.5 inch) / 8-inch (±2 inch) water column, with a built-in flame arrester (two layers of SS wire mesh) preventing intrusion of water, debris, insects, dust, etc.
Installed on top of the vent pipes of underground/above-ground fuel storage tanks
No special tools required for periodic maintenance; SS/brass wire mesh cleaned every six months
Prompt after-sales backup service

Approved by Petroleum & Safety Organization (PESO), Govt. of India & ATEX Germany.

Minimizes evaporation loss & maximizes profit for fuel storage tanks, underground or above ground. Pressure Vacuum (PV) valves, also called breather or conservation valves, substantially reduce evaporation losses compared to open vents.

Benefits: protects volatile material storage tanks against over/under pressure, controls evaporation losses, reduces dispersion of gas into the air keeping the environment clean, and safeguards against fire compared to an open vent system.

Function: the closed parts in the valve operate at a predetermined pressure or vacuum setting to allow the tank to ventilate and avoid explosion.

After Sale Service

Need after-sales support? contact our service team via phone or email for quick assistance.

At Neogi, your satisfaction is our priority. We offer comprehensive after-sales support for all our products, including expert technical assistance, maintenance guidance, and prompt service support.

FAQ

Everything You Need To Know

The NEOGI Pressure Cum Vacuum (PV) Valve is primarily installed to control fuel evaporation losses from storage tanks. By maintaining the correct pressure and vacuum inside the tank, it significantly reduces the escape of fuel vapours, helping to minimize product loss, improve profitability, reduce environmental emissions, and enhance safety.
